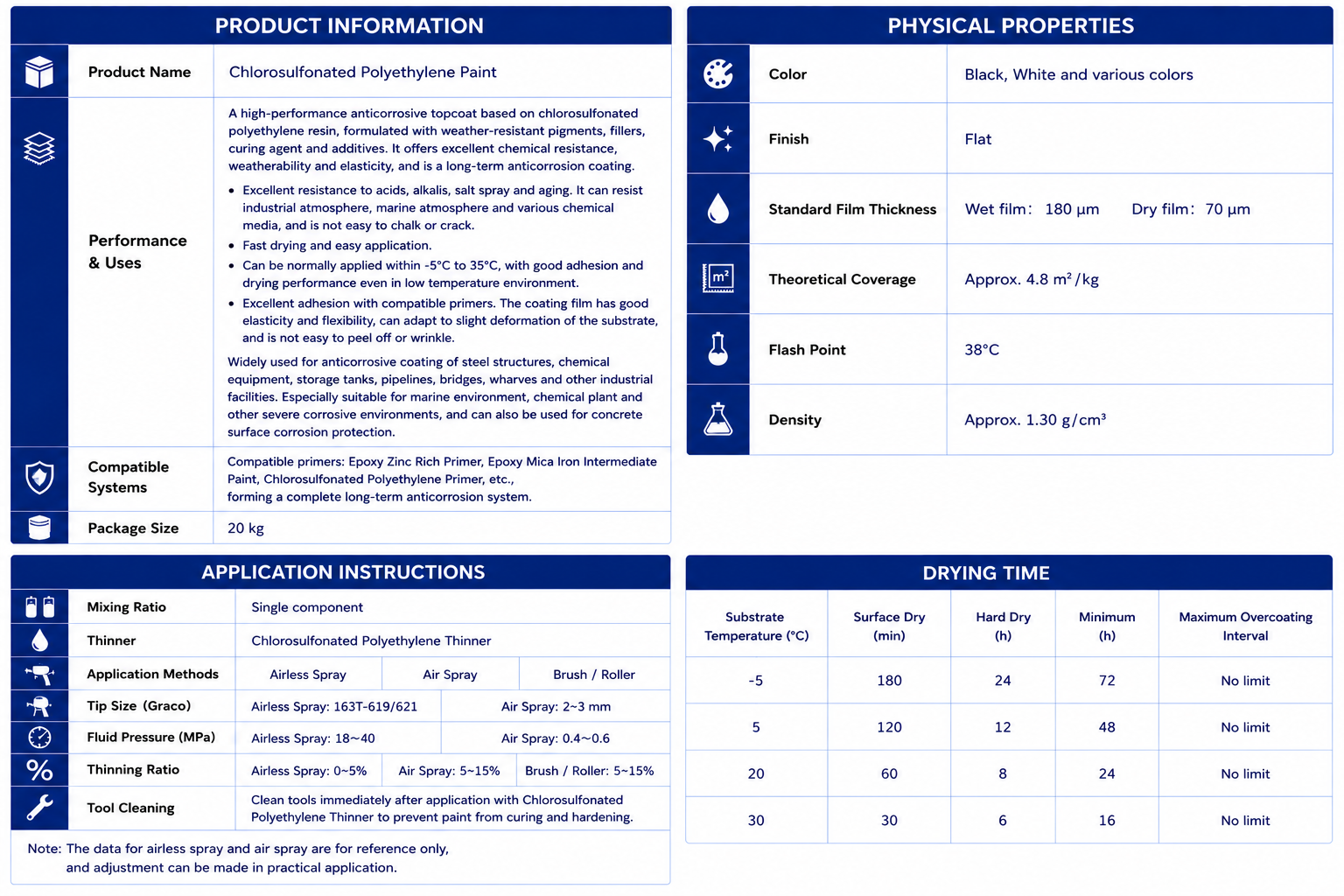

Physical Parameters
Color: Black, white, and various colors
Gloss: Matt / Flat
Standard Film Thickness:
Wet Film Thickness (WFT): $180\,\mu\text{m}$
Dry Film Thickness (DFT): $70\,\mu\text{m}$
Theoretical Spreading Rate: Approx. $4.8\,\text{m}^2/\text{kg}$
Flash Point: $38^\circ\text{C}$
Density: Approx. $1.30\,\text{g/cm}^3$
Application Instructions
Mixing Ratio: Single-component; ready for use after thorough stirring.
Thinner: Chlorosulfonated Polyethylene Dedicated Thinner
Cleaning Solvent: Clean tools with Chlorosulfonated Polyethylene Dedicated Thinner immediately after use to prevent curing, which makes cleaning extremely difficult.
Application Methods: Airless Spray, Conventional Air Spray, or Brush/Roller Coating.
Spraying Parameters
| Parameter | Airless Spray | Conventional Air Spray | Brush / Roller |
| Nozzle/Tip Size | (Graco) 163T-619/621 | $2.0 \sim 3.0\,\text{mm}$ | — |
| Fluid Pressure (MPa) | $18 \sim 40$ | $0.4 \sim 0.6$ | — |
| Thinning Ratio | $0 \sim 5\%$ | $5 \sim 15\%$ | $5 \sim 15\%$ |
Note: Airless and conventional air spray data are for reference only and can be adjusted during practical application.
Drying Time & Overcoating Interval
| Substrate Temp. (∘C) | Surface Dry (min) | Hard Dry (h) | Min. Overcoating Interval (h) | Max. Overcoating Interval |
| -5 | 180 | 24 | 72 | No limitation |
| 5 | 120 | 12 | 48 | No limitation |
| 20 | 60 | 8 | 24 | No limitation |
| 30 | 30 | 6 | 16 | No limitation |
Surface Preparation
The surface of the substrate or intermediate coat must be clean, dry, and completely free of oil stains, corrosion, and contaminants.
Surface cleanliness should reach Sa2.5 grade (abrasive blasting) or St3 grade (manual/power-tool cleaning). Remove surface dirt, salts, and dust using appropriate detergents and high-pressure fresh water, allowing the surface to dry completely before coating.
When applying over old epoxy, polyurethane, or chlorosulfonated polyethylene coatings, the existing film must be abraded/roughened to ensure optimal intercoat adhesion.
Application Conditions
Temperature & Humidity: The application temperature range is $-5 \sim 35^\circ\text{C}$ with a relative humidity (RH) below 85%. The substrate surface temperature must be at least $3^\circ\text{C}$ above the dew point. Measurements should be taken in the immediate vicinity of the substrate.
High-Temperature Constraints: Coating operations are not recommended if the substrate surface temperature exceeds $45^\circ\text{C}$ to avoid film defects such as pinholes or wrinkling.
Adverse Weather: Outdoor application is strictly prohibited during rain, snow, heavy winds, sandstorms, or dense fog.
Sub-Zero Operations: For applications below $0^\circ\text{C}$, the substrate surface must be entirely free of ice, snow, or frost, and anti-freezing measures must be taken to guarantee normal film formation.
Coating System Compatibility
Preceding Coats (Primers/Intermediate Coats): Zinc-Rich Epoxy Primer, Epoxy MIO Intermediate Paint, or Chlorosulfonated Polyethylene Primer. Using these in combination creates a highly durable, long-term anti-corrosive system.
Packaging Specifications
20 kg / pail
Storage
Store this product in a cool, dry, and well-ventilated indoor warehouse. The shelf life is one year under normal room temperature conditions.
Safety Precautions
All sources of ignition are strictly prohibited at the mixing and application sites. Maintain excellent ventilation throughout.
Applicators must wear appropriate personal protective equipment (PPE) to prevent inhalation of paint mist and contact with eyes or skin.
If paint contacts the skin, wash immediately with soap and water. If it splashes into the eyes, rinse immediately with plenty of water and seek medical attention promptly.
Disclaimer
The protective performance of any coating largely depends on application factors. Surface preparation and film thickness will directly affect the service life of the coating. Users must ensure compliance with the specified application conditions.
The data provided in this manual are theoretical values or derived from experimental accumulation. Some data may change due to continuous product improvements without prior notice.
When our company’s technical personnel are not present at the application site, the company is solely liable for the quality of the coating product itself.
