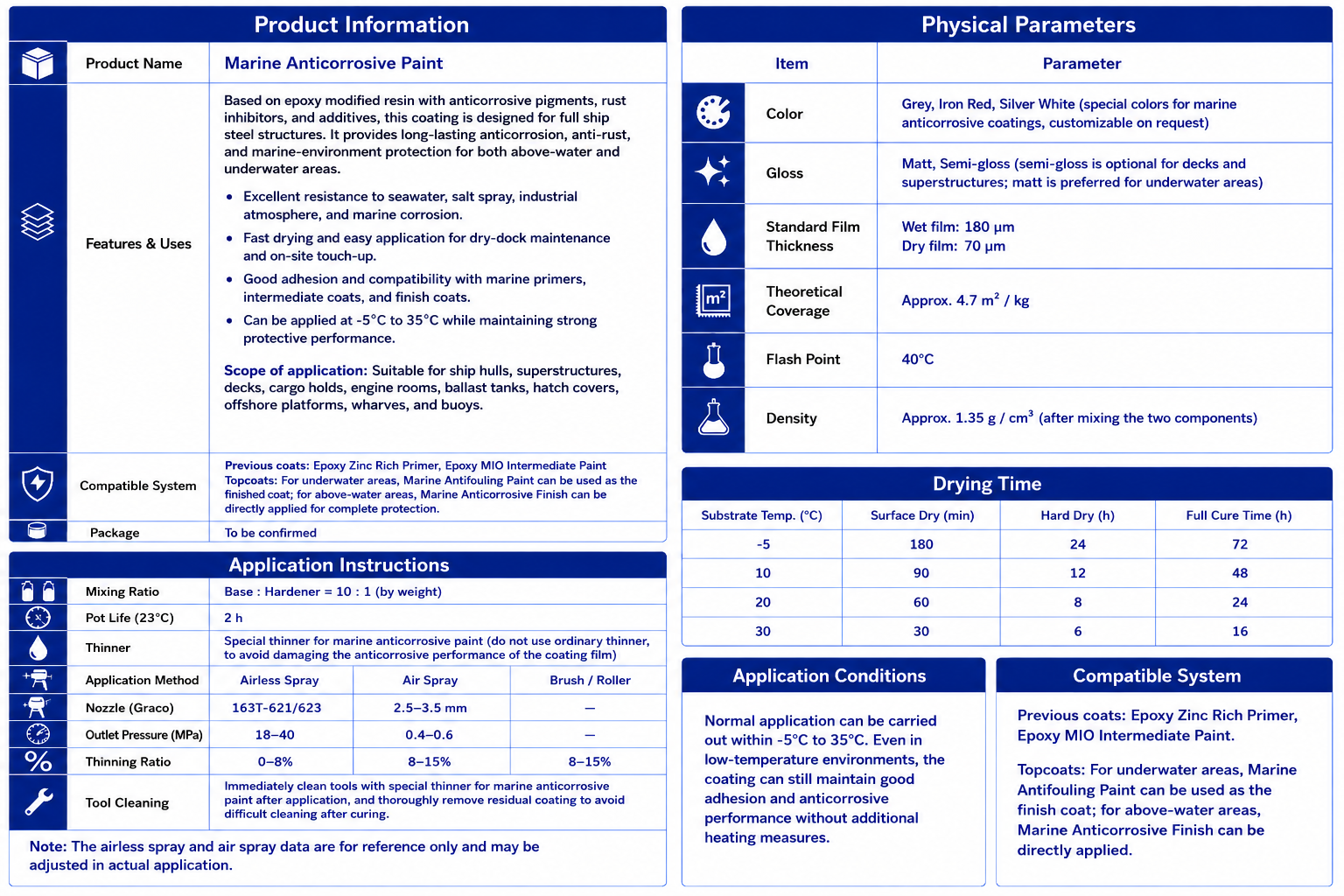

Physical Parameters
Color: Grey, iron red, silver white (specialized marine anti-corrosive colors, customizable upon request)
Gloss: Matt / Flat, Semi-gloss (semi-gloss can be selected for decks and superstructures; flat is preferred for underwater areas)
Standard Film Thickness:
Wet Film Thickness (WFT): 180 μm
Dry Film Thickness (DFT): 70 μm
Theoretical Spreading Rate: Approx. 4.7 ㎡/kg
Flash Point: 40°C
Density: Approx. 1.35 g/cm³ (after mixing the two components)
Application Instructions
Mixing Ratio: Base : Curing Agent = 10 : 1 (by weight)
Pot Life (23°C): 2 hours
Thinner: Marine Anti-Corrosive Paint Dedicated Thinner (Note: The use of general thinners is strictly prohibited as it will compromise the film’s anti-corrosive properties.)
Cleaning Solvent: Marine Anti-Corrosive Paint Dedicated Thinner. Clean all tools immediately after use to completely remove residual paint, preventing cleanup difficulties caused by product curing.
Application Methods: Airless Spray, Conventional Air Spray, or Brush/Roller Coating.
Spraying Parameters
| Parameter | Airless Spray | Conventional Air Spray | Brush / Roller |
| Nozzle/Tip Size | (Graco) 163T-621/623 | 2.5 ~ 3.5 mm | — |
| Fluid Pressure (MPa) | 18 ~ 40 | 0.4 ~ 0.6 | — |
| Thinning Ratio | 0 ~ 8% | 8 ~ 15% | 8 ~ 15% |
Note: Airless and conventional air spray data are for reference only and can be adjusted during practical application.
Drying Time & Full Curing Time
| Substrate Temp. (°C) | Surface Dry (min) | Hard Dry (h) | Full Curing Time (h) |
| -5 | 180 | 24 | 72 |
| 10 | 90 | 12 | 48 |
| 20 | 60 | 8 | 24 |
| 30 | 30 | 6 | 16 |
Surface Preparation
The surface of the substrate or intermediate coat must be clean, dry, and completely free of oil stains, corrosion, old paint residue, and contaminants.
Surface cleanliness should reach Sa2.5 grade (abrasive blasting) or St3 grade (manual/power-tool cleaning). Remove surface salts, dirt, and dust using high-pressure fresh water, allowing the surface to dry completely (moisture content $\le$ 8%) before application.
When overcoating existing marine anti-corrosive paint or epoxy coatings, the old film must be abraded and roughened to eliminate chalked or loose areas, ensuring excellent intercoat adhesion and preventing delamination.
Application Conditions
Temperature & Humidity: The application temperature range is -5 ~ 35°C with a relative humidity (RH) below 85%. The substrate surface temperature must be at least 3°C above the dew point. All measurements should be taken close to the substrate at the dry-dock site.
High-Temperature Constraints: Coating operations are not recommended if the substrate surface temperature exceeds 45°C, avoiding film defects like pinholes, wrinkling, or incomplete curing.
Adverse Weather: Outdoor application is strictly prohibited during rain, snow, heavy winds, sandstorms, dense fog, or high humidity conditions.
Sub-Zero Operations: For applications below 0°C, the substrate surface must be entirely free of ice, snow, or frost, and anti-freezing measures must be taken to guarantee normal film formation.
Coating System Compatibility
Preceding Coats: Zinc-Rich Epoxy Primer or Epoxy MIO Intermediate Paint.
Subsequent Coats: Marine Antifouling Paint can be applied as a topcoat for underwater sections, while specialized Marine Anti-Corrosive Topcoat can be directly matched for above-water sections. Using these in combination creates a complete, long-term marine anti-corrosive system.
Packaging Specifications
Base (Part A): 20 kg
Curing Agent (Part B): 2 kg
Storage
Store this product in a cool, dry, and well-ventilated indoor warehouse, away from open flames and heat sources. Avoid direct sunlight.
Do not store together with acidic or alkaline substances. The shelf life is 12 months under normal room temperature (5-30°C) conditions.
The base and curing agent must be stored separately. Once opened, the product should be used as soon as possible; any unused portion must be tightly sealed and stored.
Safety Precautions
All sources of ignition and smoking are strictly prohibited at the mixing and application sites. Maintain excellent ventilation to reduce paint mist concentration and avoid the inhalation of harmful components.
Applicators must wear appropriate personal protective equipment (PPE), including protective masks, safety goggles, and solvent-resistant gloves to avoid paint mist inhalation or eye and skin contact.
If paint contacts the skin, wash immediately with soap and water or a specialized skin cleanser. If it splashes into the eyes, rinse continuously with plenty of water for at least 15 minutes and seek immediate medical attention.
Warning signs must be placed around the application area to restrict unauthorized entry. Clean up residual coatings and thinners promptly after construction to avoid polluting the marine and surrounding environments.
Disclaimer
The protective performance of any coating largely depends on application factors. Surface preparation and film thickness will directly affect the service life of the coating. Users must ensure compliance with the specified application conditions.
The data provided in this manual are theoretical values or derived from experimental accumulation. Some data may change due to continuous product improvements without prior notice.
When our company’s technical personnel are not present at the application site, the company is solely liable for the quality of the coating product itself.
