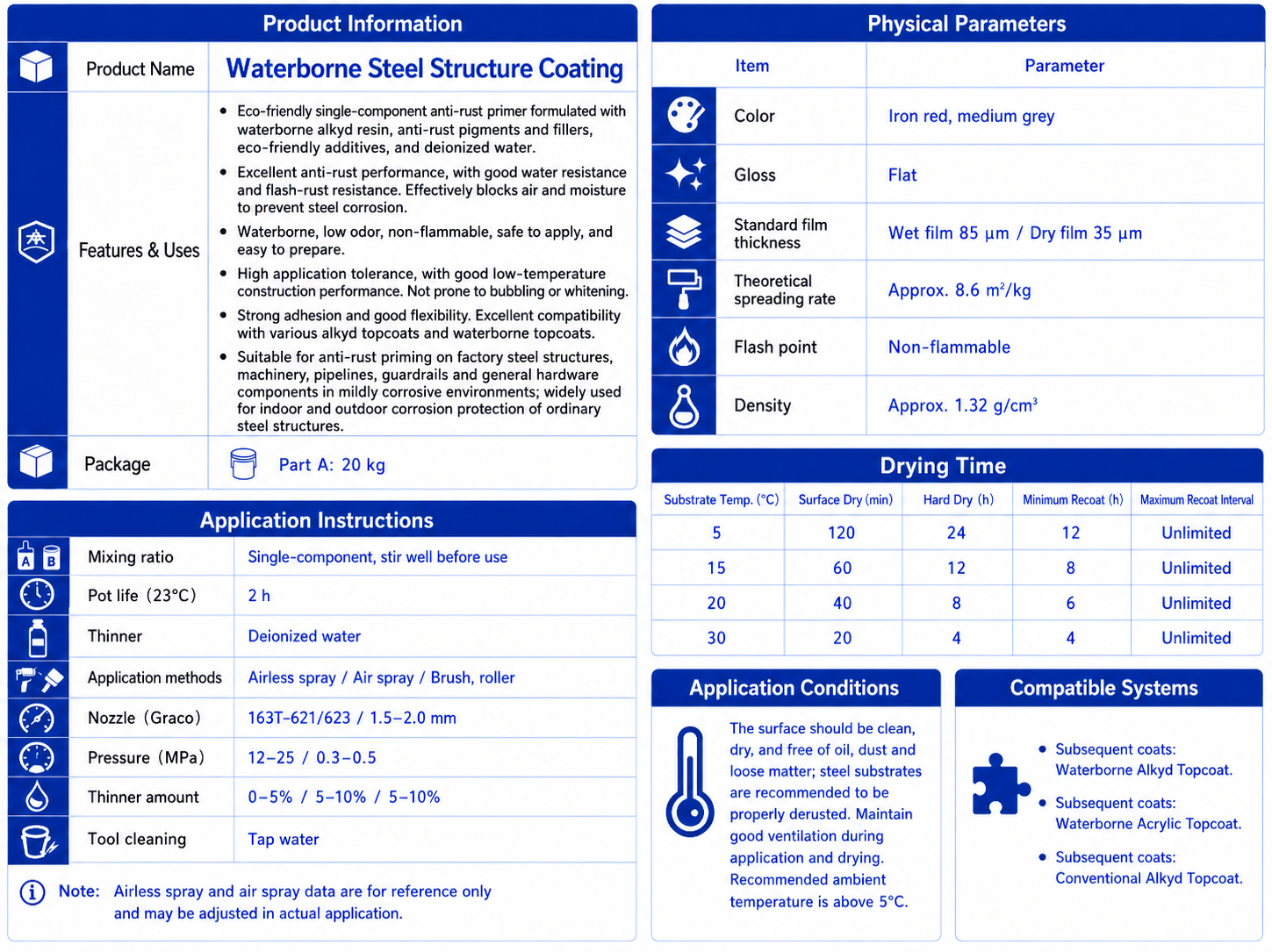

Physical Parameters
Color: Iron red, medium grey
Gloss: Matt / Flat
Standard Film Thickness:
Wet Film Thickness (WFT): 85 μm
Dry Film Thickness (DFT): 35 μm
Theoretical Spreading Rate: Approx. 8.6 ㎡/kg
Flash Point: Non-flammable
Density: Approx. 1.32 g/cm³
Application Instructions
Mixing Ratio: Single-component; ready for use after stirring thoroughly to a uniform consistency.
Pot Life (23°C): 2 hours (Note: Represents the open-container workable time once handled onsite.)
Thinner: Deionized water
Cleaning Solvent: Tap water
Application Methods: Airless Spray, Conventional Air Spray, or Brush/Roller Coating.
Spraying Parameters
| Parameter | Airless Spray | Conventional Air Spray | Brush / Roller |
| Nozzle/Tip Size | (Graco) 163T-621/623 | 1.5 ~ 2.0 mm | — |
| Fluid Pressure (MPa) | 12 ~ 25 | 0.3 ~ 0.5 | — |
| Thinning Ratio | 0 ~ 5% | 5 ~ 10% | 5 ~ 10% |
Note: Airless and conventional air spray data are for reference only and can be adjusted based on onsite conditions during practical application.
Drying Time & Overcoating Interval
| Substrate Temp. (°C) | Surface Dry (min) | Hard Dry (h) | Min. Overcoating Interval (h) | Max. Overcoating Interval |
| 5 | 120 | 24 | 12 | No limitation |
| 15 | 60 | 12 | 8 | No limitation |
| 20 | 40 | 8 | 6 | No limitation |
| 30 | 20 | 4 | 4 | No limitation |
Surface Preparation
The steel substrate surface must be clean, dry, and completely free of oil stains, dust, mill scale, and loose rust. Cleanliness should reach at least St3 grade using power-tool cleaning.
When overcoating existing coatings, the old film must be abraded and roughened to eliminate chalked or loose paint layers. Clean thoroughly before primer application.
Application Conditions
Temperature & Humidity: The application temperature range is 5 ~ 40°C with a relative humidity (RH) below 80%. The substrate surface temperature must be at least 3°C above the dew point.
Constraints: Humidity levels must not be excessively high, as high-humidity environments easily cause flash rusting. Outdoor application is strictly prohibited during rain, snow, heavy fog, or severe wind and sandstorms.
Sub-Zero Warning: The application ambient temperature must never fall below 0°C. Low temperatures will cause latex emulsion breakage, rendering the coating ruined and unusable.
Coating System Compatibility
Subsequent Coats (Topcoats): Waterborne Alkyd Topcoat, Waterborne Acrylic Topcoat, or standard solvent-borne Alkyd Topcoat.
Packaging Specifications
20 kg / pail
Storage
Store this product in a cool, dry, and well-ventilated indoor warehouse. Ensure protection against freezing.
The storage temperature range must be maintained between 5°C and 30°C. The shelf life is one year under standard temperature conditions.
Safety Precautions
This product is a waterborne coating and is non-flammable. Maintain good ventilation throughout the application site.
Applicators must wear appropriate personal protective equipment (PPE) to prevent inhalation of paint mist and avoid contact with eyes or skin.
If paint contacts the skin, wash immediately with fresh water and soap. If it splashes accidentally into the eyes, rinse continuously with a large volume of water and seek immediate medical attention.
Disclaimer
The protective performance of any coating largely depends on application factors. Surface preparation and film thickness will directly affect the service life of the coating. Users must ensure compliance with the specified application conditions.
The data provided in this manual are theoretical values or derived from experimental accumulation. Some data may change due to continuous product improvements without prior notice.
When our company’s technical personnel are not present at the application site, the company is solely liable for the quality of the coating product itself.
